3D Printed 1/2" EMT Mini Coro support bracket and anti spin bracket
3D Printed 1/2" EMT Mini Coro support bracket and anti spin bracket

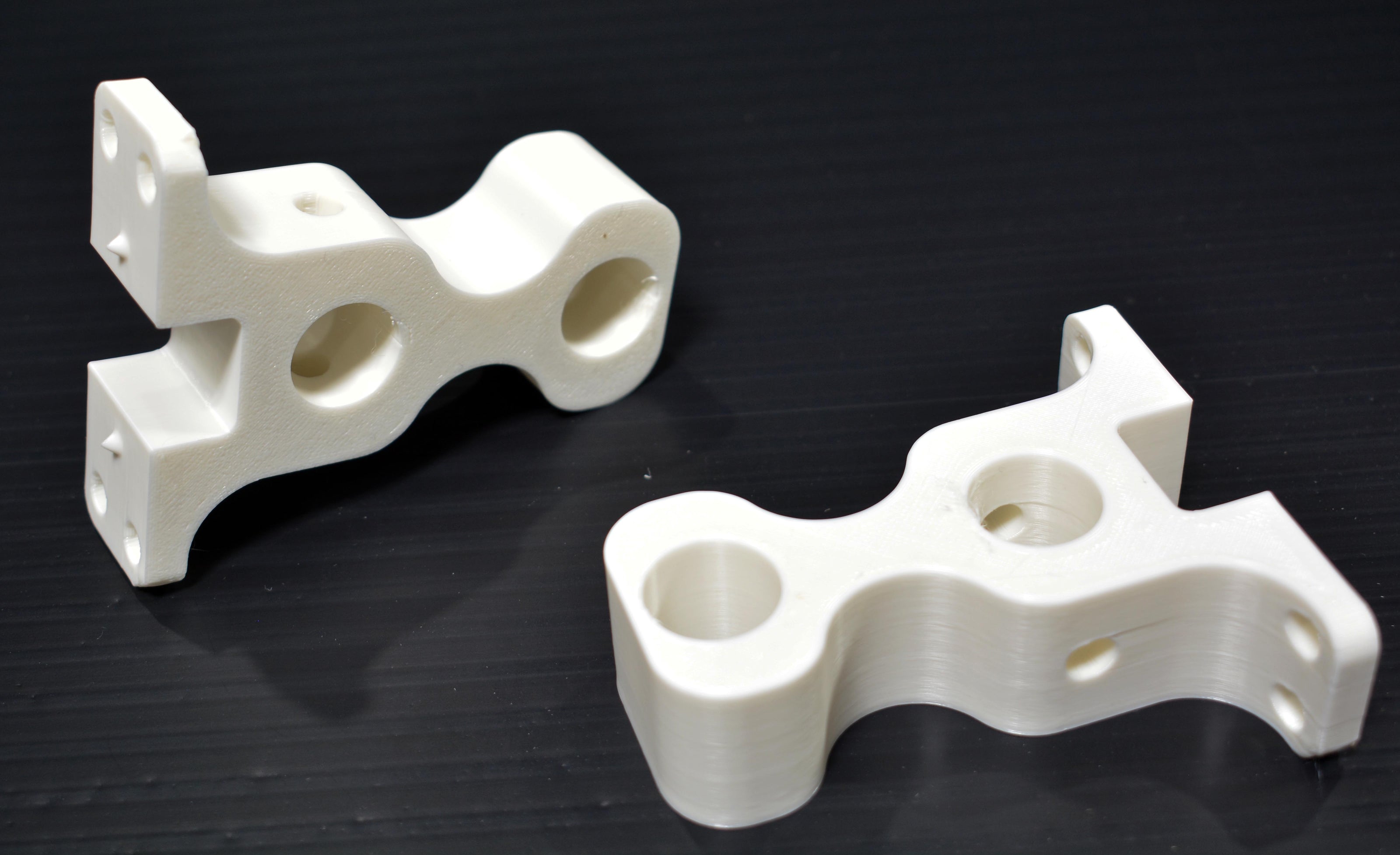

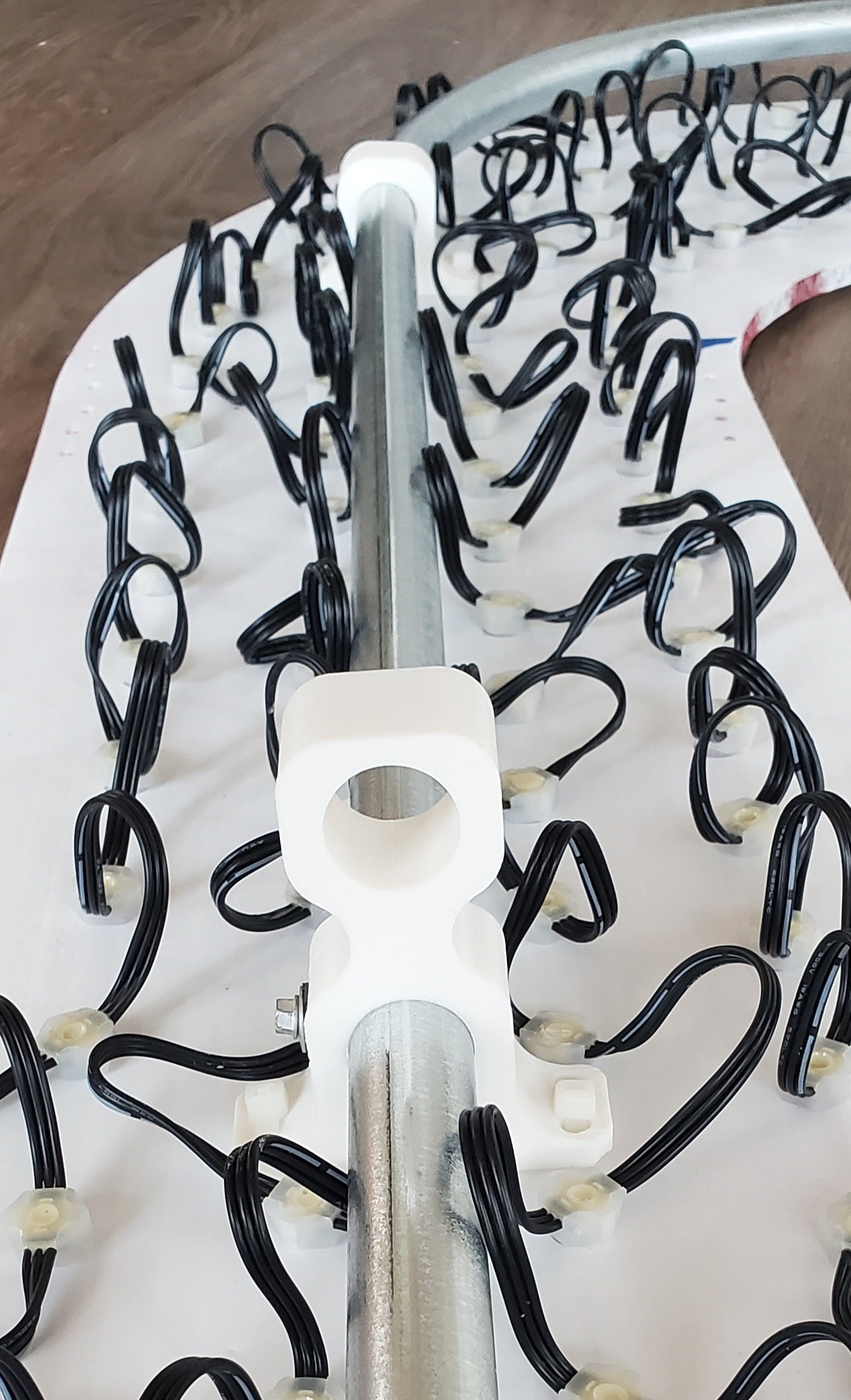

This mount is designed to be universal for most props like our other coro support brackets but fit in more narrow areas. This may not work with some HD props (example, may not work with the Infinity Spinner). This is considered lighter duty than our others so is only offered for 1/2 EMT.
This design is meant to be easy to install and last. Fully enclosed hole.
Small spikes on the back of the prop are designed to hold in place into the coro so that drilling a 1/4" hole for bolts or zip ties is easy, accurate work and your drill bit won't walk through the flutes! A 1/4" hole will need to be drilled through the pipe to retain the mount from sliding.
These are printed in durable UV resistant ASA plastic.
The design base is 1"x3". Overall height is 2". There is also a gap at the base that allows for pixel wiring to fit. Standard bullet pixels and Twinkly lights themselves will not clear but their wiring absolutely will. Flat style pixels (EVO, Flat Back, New Style, Magical Light Shows, etc) do fit within the channel.

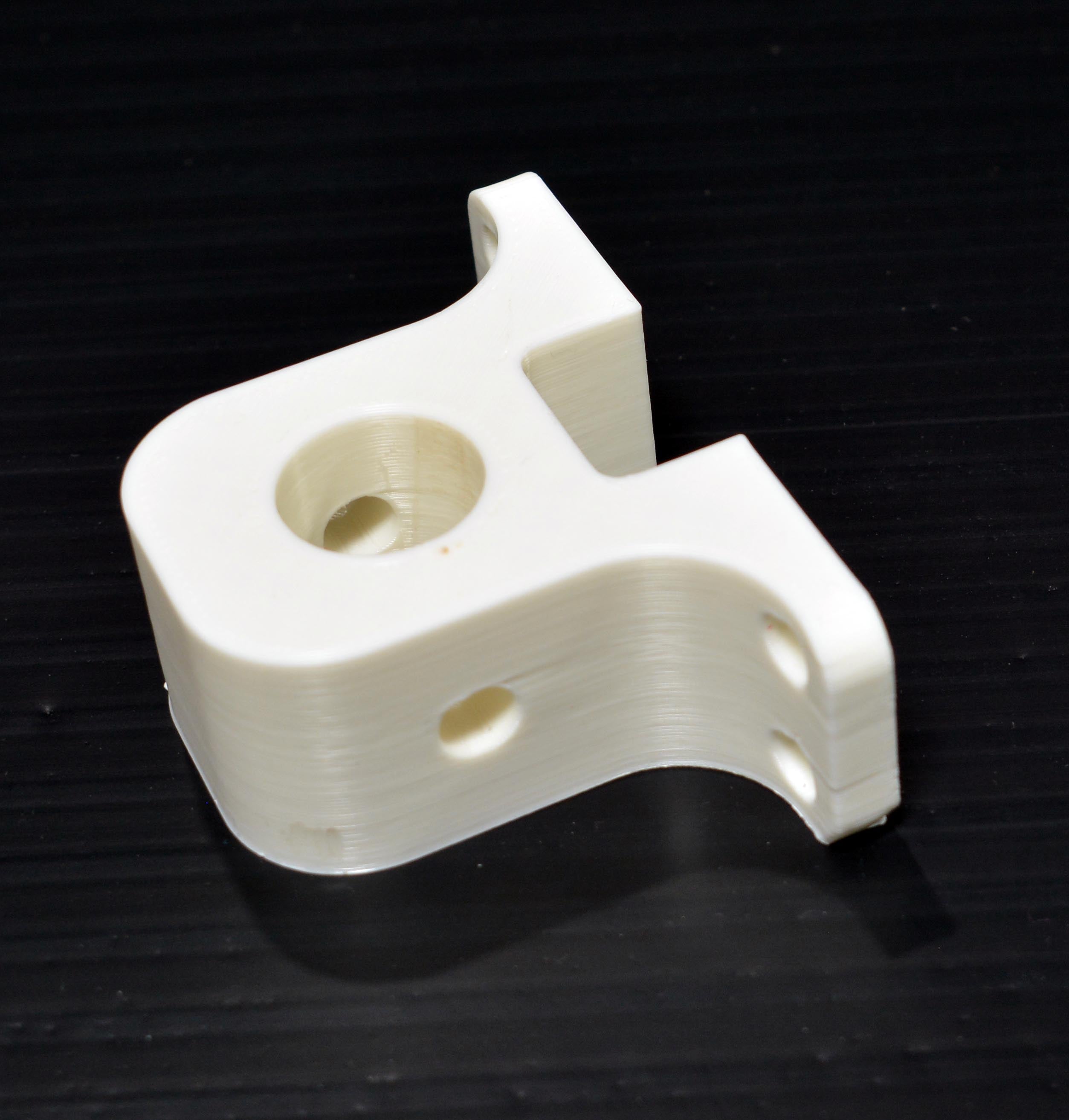

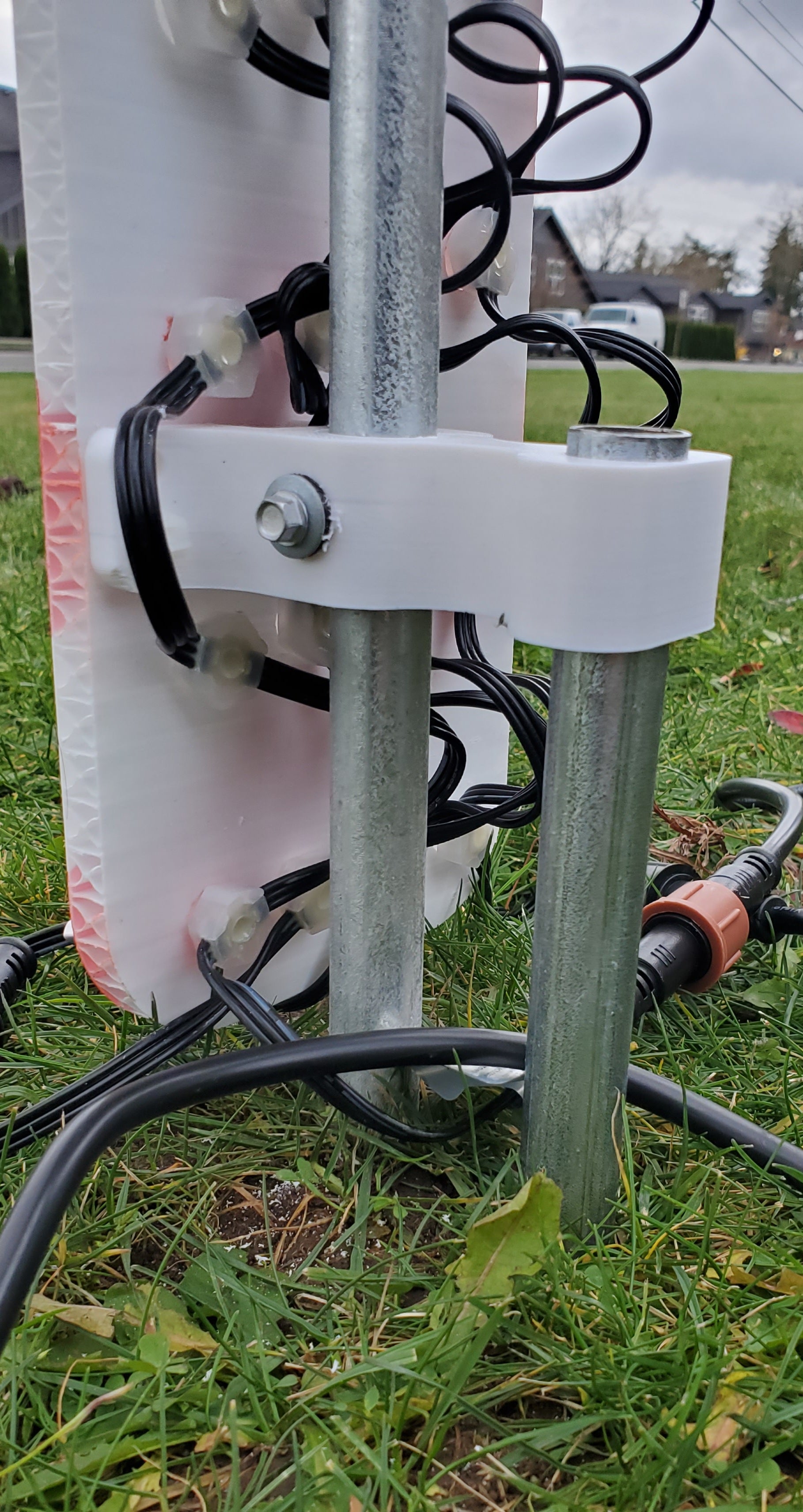

We also offer this with an "anti spin" feature - where you use an additional piece of 1/2" EMT (or a ground stake of some sort) which keeps the prop from being able to spin. Buy the 2 pieces for a single prop (like Candy Canes) where the standard mount is at the top and the anti spin mount is towards the ground!
