Twinkly Charlees Small Double Helix (Spiral Tree) - 2 sided, 2.25 spirals, 35-45" tall 100 Twinkly Lights
Twinkly Charlees Small Double Helix (Spiral Tree) - 2 sided, 2.25 spirals, 35-45" tall 100 Twinkly Lights

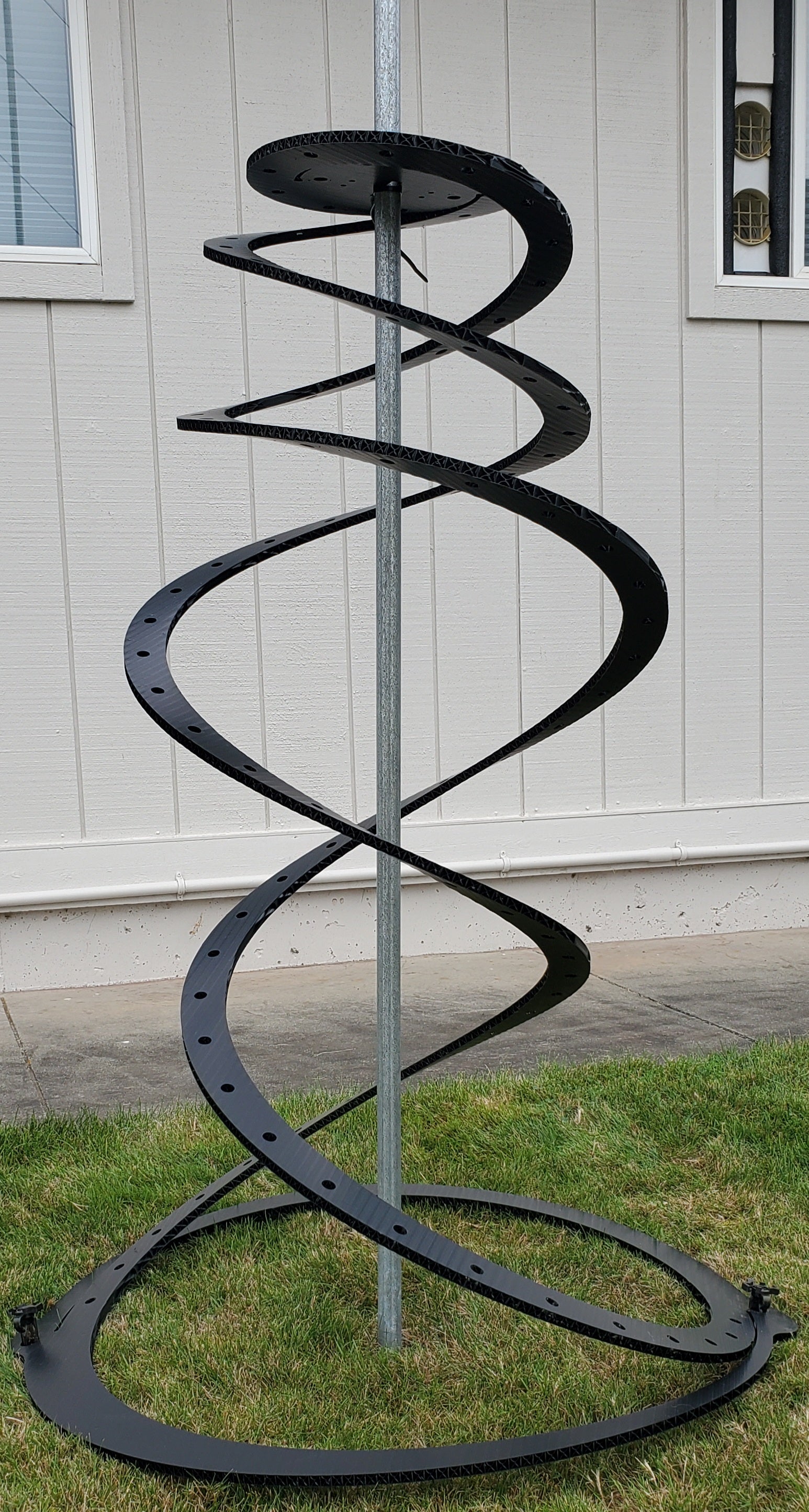

Charlees Small Double Helix is a unique spiral tree with nothing like it currently available (except for our taller Double Helix spiral tree!)
This spiral tree has not 1, but 2 spirals from top to bottom, having 50 Twinkly Lights on each spiral. Extended, this tree can be made between 35-45" tall. There are additional support holes made into the base to use ground stakes (not included).
The double spiral adds in both significantly better effects over a single spiral, but also additional structural support for the spirals themselves!
The mounting option for this small Double Helix tree is to simply use 3/4" EMT and our free to download/print tree topper support. This uses the SAME topper as our standard Double Helix Tree.
To set this up in Xlights you will use the following:
Place a tree in your layout
Type: Round
Degrees: 360
Rotation: 3
Spiral Wraps: 2.25
Bottom/Top ratio: 3
For 2 port connections at your controller:
# Strings: 2
Nodes/String: 50
Strands/String: 1
For 1 port connection:
# Strings: 1
Nodes/String: 100
Strands/String: 2
Once your model is created - it is suggested to create a few submodels refer to the video for instructions if you need them. Note, the video is for the standard Double Helix tree and you will change the values as stated here:
Otherwise:
Spiral Tree should have top of 1-50 and bottom of 100-51
Split or create 2 more that break these out separately into "Side 1" and "Side 2"
Twinkly Lights not included, must purchase and install separately.
