Twinkly - Noble Tree with star; ~6ft tall and 2ft wide; 600 lights

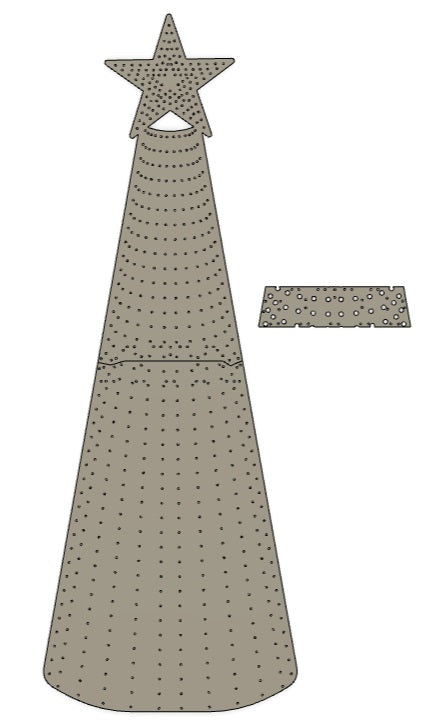

This tree is specifically designed with and for one single Twinkly 600 string;  It stands just under 6ft tall and is a little over 2 ft wide.

The tree itself is a 3d-effect tree (in Xlights, see below for model build information) of 12 lines with 40 lights each - making 480 lights.

The star is a 3 layer star using a total of 120 lights.

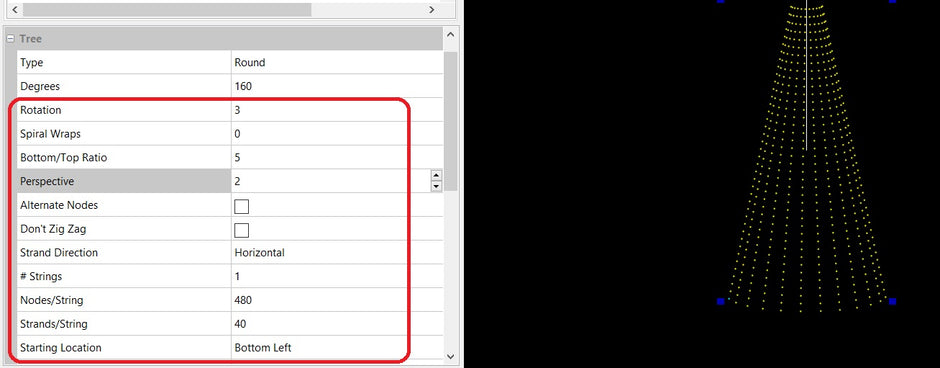

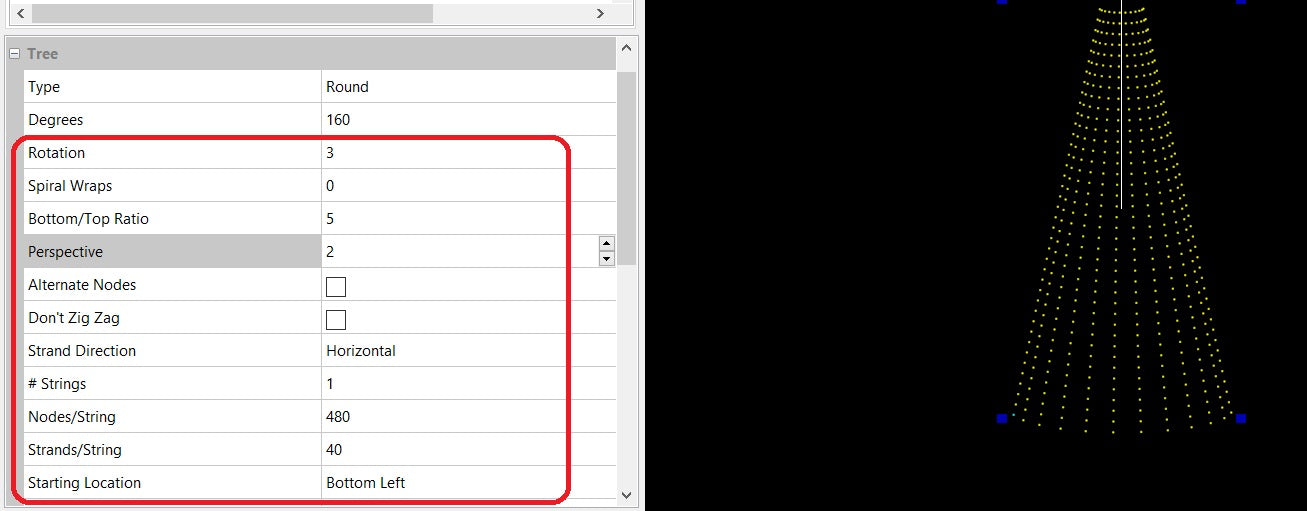

In Xlights to create the tree:
Tree type is Round
Degrees is 180
Rotation is 3
Bottom/Top Ratio is 5
Perspective is 2
Strand direction is Horizontal
# Strings 1
Nodes/String 480
Strands/String 40
Starting Location Bottom Left or Bottom Right

In Xlights to create the star:
# strings 1
Nodes/String will autopopulate
Starting Location will be Left or Right bottom (depending on how you wired your tree)
Layers 3 - then expand the + when you create the 3 layers
Inside Layer 30
Layer 2 40
Outside 50
(This should then populate Nodes/String to 120)

This prop is sold as the corrugated plastic cut to fit the Twinkly lights (not included in sale) as 2 pieces plus a zip tie bracket.  Re-attach the pieces together before placing lights.
